Thermal Spray handling equipment comes in many shapes and forms. We refer to anything that handles the part or the gun as handling equipment.  Below you can see various ways to handle the part, the gun, the smoke, and the heat in thermal spray processes.

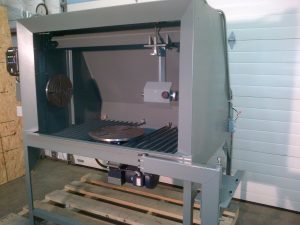

TSD RM2 Spray Booth

TSD RM2 Spray Booth with headstock, tailstock, turntable, and controller

TSD RM2 Spray Booth with headstock and turntable

Specifications:

  • Booth Dimensions: 58.5”W x 48”D x 72”H
  • Hood opening 32″ x 50″
  •  Removable grating inside booth
  •  Includes lights, 14” exhaust outlet
  •  Headstock: 12” diameter slotted faceplate, 575 rpm, and ¾ HP, 3 PH, 230V Motor
  • Turntable: 300 lb. capacity, 350 rpm, 18”diameter slotted faceplate and 1HP, 3PH, 230V Motor
  • AC Inverter Control

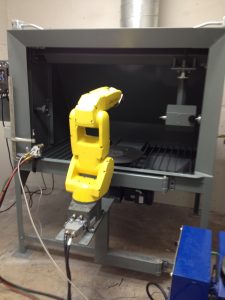

Faunc LR Mate





Add a Fanuc LR Mate to the RM-2 Hood Hinged Robot mount swings out of the way

TSD M4 Turntable

Manually Tilting

Manually Tilting Turntable

Manually tilting turntable

Specifications:

  • Dimensions: 40”W x 40”D x 39”H
  • 500 lb. capacity
  • 24” diameter slotted steel faceplate
  • 90 degree tilt by hand crank
    Variable speed up to 360 RPM Max

Horizontal/Vertical Traverse

Horizontal/Vertical Traverse

Specifications:

  • Horizontal Stroke: 60” with 3” acceleration & deceleration
  • Vertical Stroke: 60” with 2” acceleration & deceleration
  • Horizontal & Vertical speed: 1-150 SFPM (opt. 200 SFPM)
  • Stepping capabilities of 1/8”, 1/4”, 1/2” on both axes
  • Programs: step horizontal, step vertical, step both or step none
  • Jog: up, down, right, left, with speed adjustments
  • Limit switches on slide adjustment
  • Air powered counter-balance for torch weight

Wet Collector Exhaust System

Wet Collector Exhaust System

Specifications:

  • 2,500 – 3,000 CFM
  • 7.5 H.P., 1,800 R.P.M. Motor
  • Dimensions: 45” W x 40” D x 92” H
  • Inlet adapter for 12” duct.
  • Viewing windows
  • Plumbing for draining and filling

Flat Wall Plenum

Flat Wall Plenum

Specifications:

  • Plenum Dimensions: 7’W x 5’H x 2’D
  • Suitable for 8,000 CFM
  • 24” diameter outlet on plenum back
  • Moveable louvers on front grate

RM ClamShell Hood

RM ClamShell Hood

Specifications:

  • Exhaust hood to fit on lathe bed
  • Shutters adjust from 12 inch to 30 inch
  • Top flips open to load and unload parts
